ITPC100 Industrial Terminal
- Details
- Category: Products
Introduction

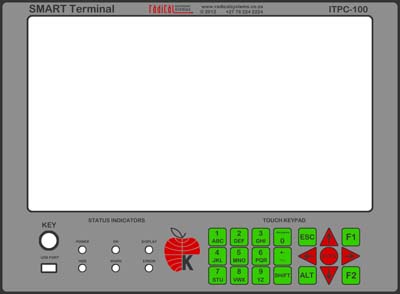

The ITPC100 is a VESA mount type PC with a capacitive touch keypad and 19” LCD screen. The terminal has an industrial grade power supply and Mini-ITX motherboard. Special care was taken during the enclosure design process to ensure that all cabling is enclosed. Motherboard and power connections has a cover at the back keeping an installation tidy and robust. The front has a 4mm Plexiglass screen protecting the LCD screen and capacitive touch keypad electronics. The complete front is covered with a high grade screened overlay giving the ITPC100 a very attractive finishing.
Features
- Flash based Linux Operating System for high reliability
- Intel® Atom™ processor N270 1.6GHz with ultra low voltage fanless support
- 2 GB RAM
- 4 x RS232 serial ports
- Dual LAN: Realtek PCIe 8111CP GbE controller
- Capacitive Touch Keypad that implements a full keyboard - Custom keymaps supported
- Navigation keys is supported in front keypad
- Motherboard and Display ON/OFF functions implemented with combination keys on front keypad
- Support for I/O peripheral card with 4 x Relays and 4 x Optically Isolated Inputs
- Radical ES USB Key support (Integrated)
- iButton Reader (Integrated)
- 2 x RFID Reader (Optional)
- Robust enclosure design to with stand the toughest factory conditions
- Vesa mount 100mm and 200mm for easy mounting
- Standard interfaces and flash OS make it easy to deploy
- Front LED indicators for power, hard drive and process indicators

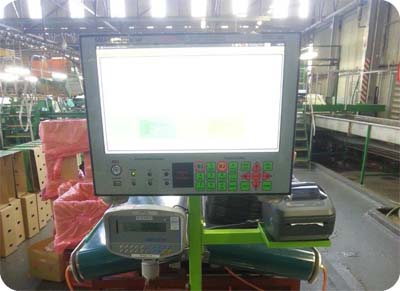

Typical Installation
Below is a typical pack house installation.
